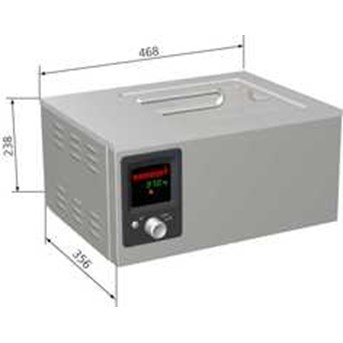

MEMMERT WATERBATH WNB 7 RING

Control microprocessor PID-temperature controller with integrated autodiagnostic system with fault indicator solid state switching unit one Pt100 sensor class A in 4-wire-circuit integrated digital timer from 1 min. to 99, 59 hours for: ON continuous operation WAIT ( delayed on for continuous and limited timed operation) HOLD digital display ( LED) of set and actual temperature ( 0, 1 ° C resolution) and of ( remaining) programme time LEDs for indication of programme status Overtemperature protection ( double) in case of overtemperature due to failure, the heating is switched off at approx. 10 ° C above the set temperature ( fixed value) mechanical temperature limiter TB protection class 1 switching the heating off at approx. 30 ° C above max. temperature of the bath Textured Stainless Steel Casing l x w x h: 468 x 356 x 238 mm material 1.4301 ( ASTM 304) , corrosion resistant Interior - Heating Concept l x w x h: 240 x 210 x 140 mm, 7 l easy-to-clean interior, made of stainless steel, reinforced by deep drawn ribbing, material no. 1.4301 ( ASTM 304) , laser-welded corrosion-proof large-area heating on three sides Temperature Range from + 10 ° C ( however, at least 5 ° C above ambient) up to + 95 ° C with additional boiling mode ( + 100 ° C) Voltage / Power Rating 230 V ( + / - 10% ) , 50/ 60 Hz ca. 1.200 W ( during heating) Packing Data net weight approx. 11 kg gross weight carton approx. 14 kg dimensions approx.: carton w x h x d: 57 x 45 x 42 cm the appliances must be transported upright Customs Tariff Number 8419 8998 Country of Origin Federal Republic of Germany WEEE-Reg.-No. DE 66812464 Accessories Flat stainless steel cover with openings and concentric ring sets ( 1 opening / 147 mm diameter) L0 Gable stainless steel cover mounted for condensate drainage L1 Water level control ( for WNB, WNE, WPE)
